Description:

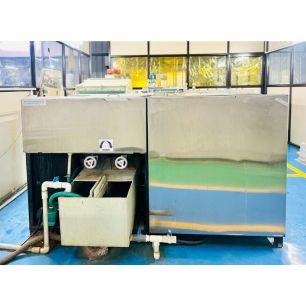

Single-sided or double-sided machine for deoxidizing, light de-burring, and surface finishing of printed circuit boards.

• All types of brushes can be used.
• Brush changing is simpler.
• High-pressure water rinsing with recirculating system.
• Total interior made of PVC sheet and stainless steel.
• Each brush has an independent drive and can be operated separately.
• Conveyor speed is variable from 0.25m to 1.5m/min.

Technical Features:

• Conveyor Width: 610 mm
• Conveyor Speed: 0.5 to 3 Mtrs/Min
• Board Thickness: 0.8 to 3.2 mm
• PCB Size Minimum: 150 × 150 mm
• PCB Size Maximum: 610 × 1250 mm
• Max. Operating Temp.: 80°C
• Conveyor Pitch: 75 mm
• Brush Size: 125 × 610 × 35 mm

Modules & Dimensions:
