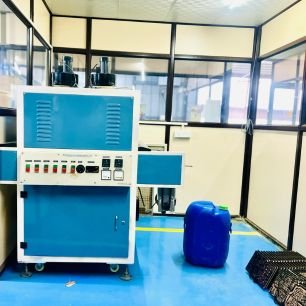

UV Curing Machine

This machine is used to apply film to both sides of PCB

Technical Features:

• Compact & Designed Machine Fabrication
• Medium pressure mercury vapour U.V. lamps
• 400 watts / inch (can also be run at 250 watts / inch)
• Anti-static PTFE Teflon coated Fibre glass conveyor belt
• Conveyor driven by AC Geared Motor
• Digital belt speed indicator in M.V. line
• Digital hour meter for lamp life record
• Individual lamp ampere meter (both lamps)
• Teflon coated wiring control panel to lamp

Model: MEPL - UV 610

• U.V. Curing Length: 25'
• Max. Conveyor Width: 27"
• Lamp Intensity: 200 / inch - 5 K.W.
• Power: 430 Volt AC, 3 Phase
• Power Consumption: 5 K.W., 10 K.W.
• Overall Sizes: 105" L × 48" W × 48" H
